The aim of the present study is the clinical evaluation of a new composite material, specifically designed for direct restorations of posterior sectors of the oral cavity (Estelite Sigma Quick Posterior® – Tokuyama Dental).

This material has excellent mechanical, physical properties and introduces important innovations, such as RAP technology (Radical Amplified Photopolymerization Technology), allowing for a rapid material polymerization (the polymerization time is about one-third shorter than other composite resins) and a good stability to light.

Another advantage is the presence of hybrid fillers, constituted by 0.2 µm spherical particles obtained by sol-gel process (ensuring excellent material moldability and polishing) and 3 µm irregular particles obtained by smash process, which implement the mechanical characteristics.

our clinical experimentation was based on 10 direct restorations of posterior sectors, using the above-mentioned material (restorations performed between June 2010 and March 2011).

We evaluated the clinical characteristics of the material and patient feedback both at time zero (immediately after restoration) and at time one, that is to say six months after restoration.

The criteria we used are based on the modified United States Public Healt Service (USPHS) criteria, which constitute a system of clinical evaluation suggesting an anamnestic, visual and instrumental (bodkin) analysis, in order to evaluate:

  • color harmony

  • integrity of restoration

  • marginal integrity

  • anatomical form of the marginal ridge

  • anatomical form of the whole surface

  • margin discoloration; abrasion; postoperative sensitivity

  • patient satisfaction.

Each of these criteria was rated (A= excellent; B = acceptable; C = filling reconstruction; D = unacceptable), allowing for a global evaluation of the characteristics of the material.

Estelite ∑ Quick Posterior ®

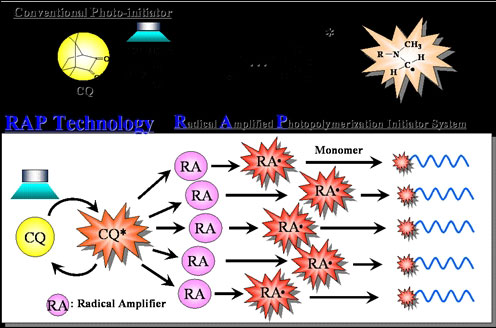

a single CQ molecule, if excited, allows to obtain more molecules of radical anions (RA), which cause concurrent polymerization of more monomers.

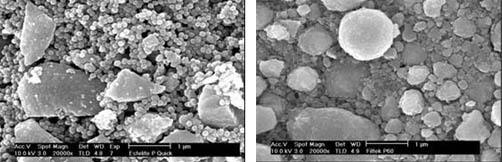

Filler characteristics: SEM vision (2000 X magnification)


  • Filler volume: 86%

  • Compressive strength:443

  • MPa Flexural strength: 215 MPa

  • Vickers hardness:87 Kg/mm after 30s of polumerization

  • Contraction stress:0.73 mPa

  • Volume contraction:1,5%

  • Light stability: 50s at 10000 lux

  • Radiopacity:298%

  • aluminium radiopacity

  • Polymerization time: 10s

Medical protocol:

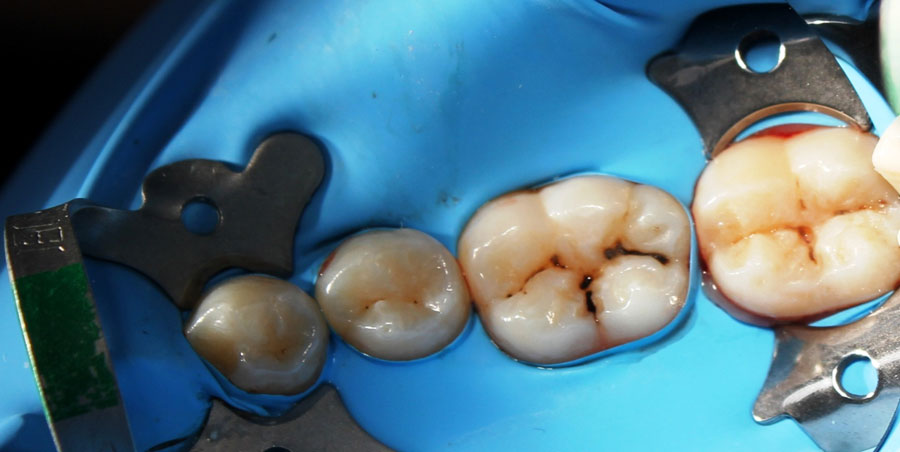

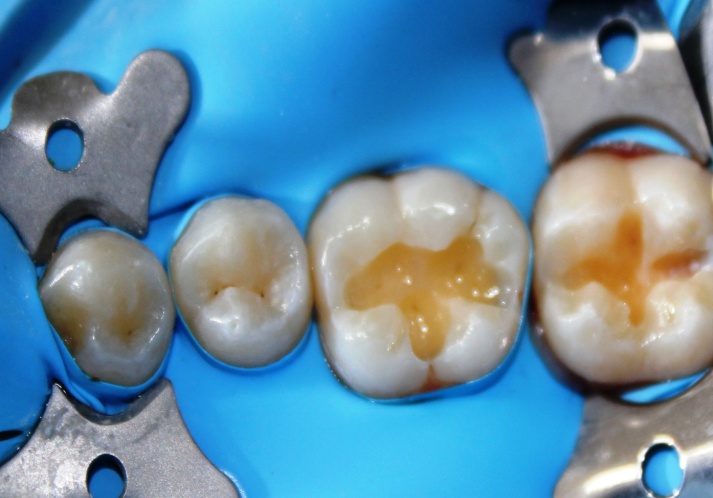

Diagnosis of carious lesion Tooth isolation using the dental dam

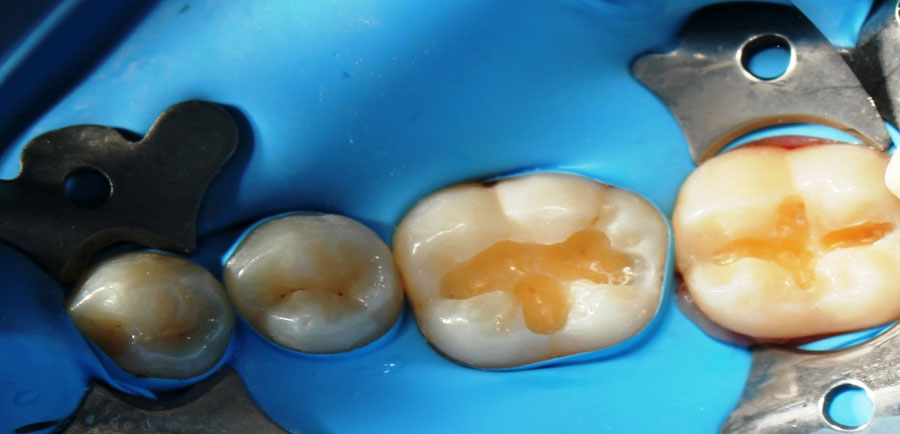

3) Tissue removal using a diamond coated cylindrical burr, mounted on a turbine, followed by cavity finishing using a tungsten carbide round bur mounted on a micromotor.

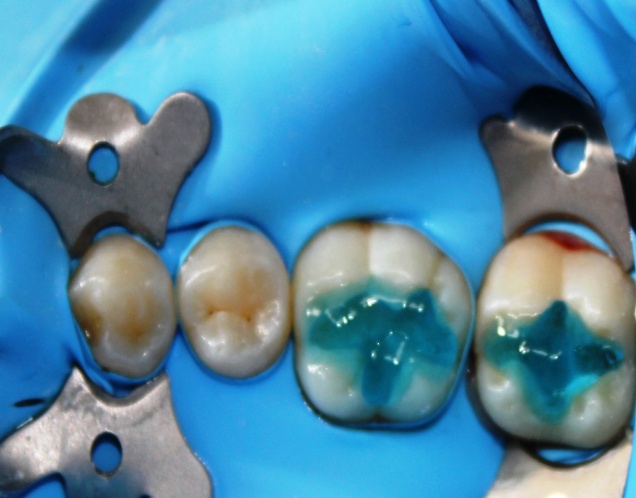

4) The mordant was 37% phosphoric acid for 30s on the enamel and for 20s on the dentin, followed by 30s rinsing and 20s drying

5) Application of EDTA for 20s, followed by rinsing and application of 0.2 % chlorhexidine for other 20s.

6) Application of primer
7) Application of bonding, followed by polymerization for 20s.

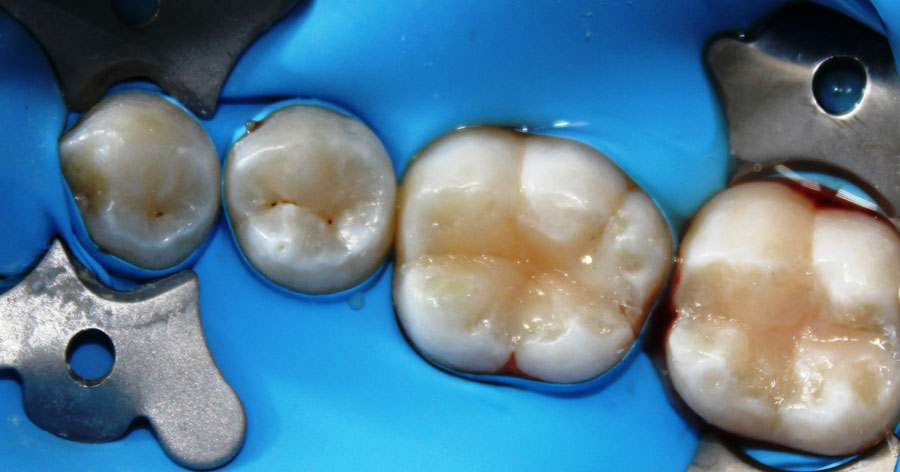

8) Application of composite using the incremental procedure, modeling each layer which is then polymerized for 20s.
9) Occlusal control after dam removal.
10) Finishing and polishing

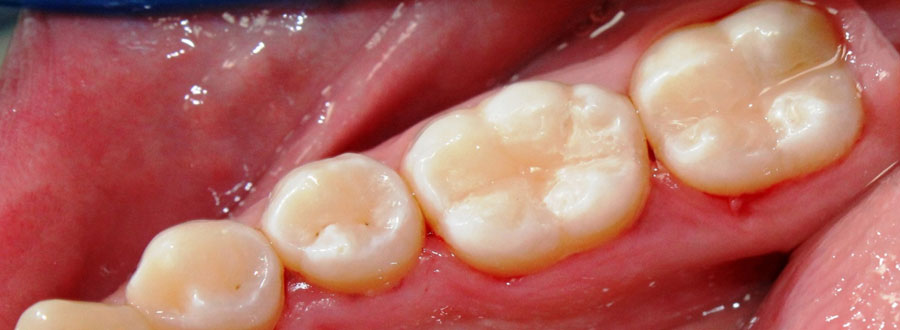

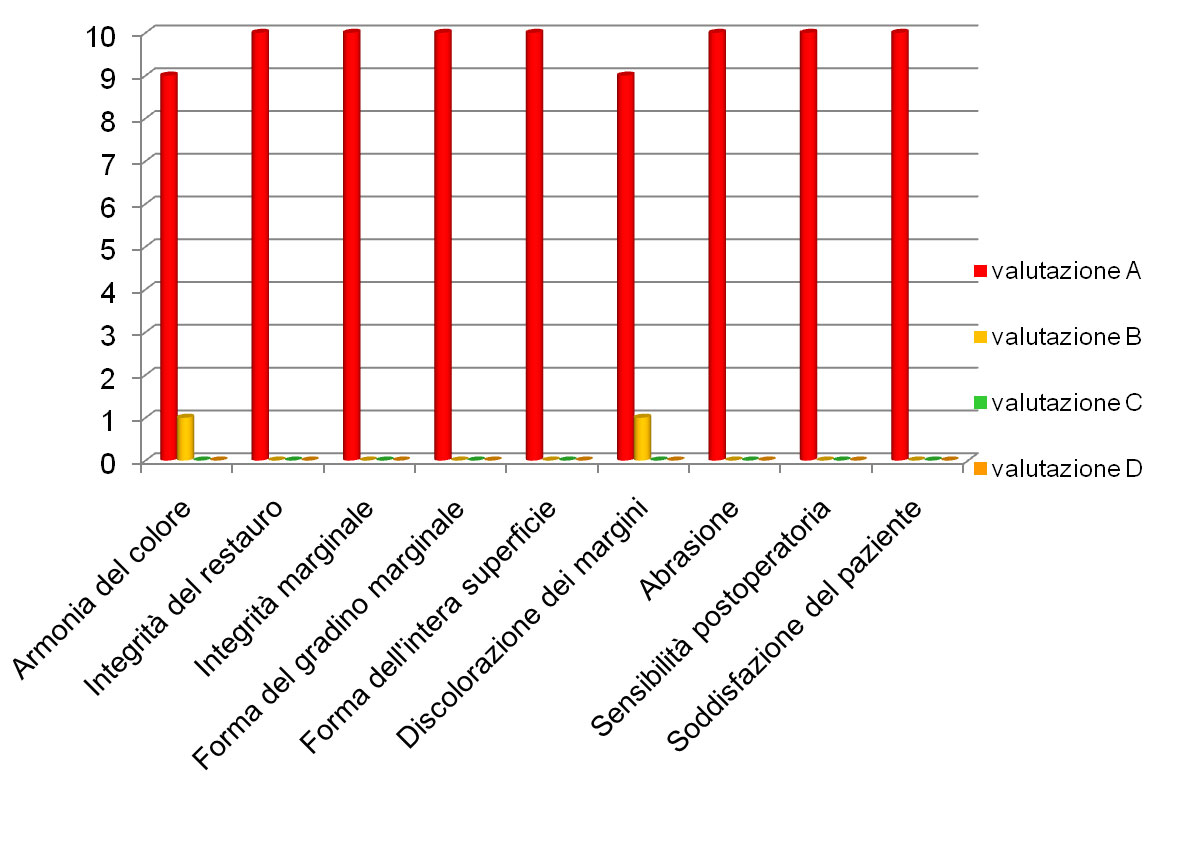

Both at time 0 and time 1, Estelite Posterior produced excellent results for all the examined criteria, with a few infrequent exceptions, confirming the properties advertised by the manufacturer, from both a mechanical and clinical perspective (See the graph below). Therefore, this material can be included in the category of the best commercially available composite materials for restorations of posterior sectors.

Congresso Nazionale dei Docenti di Discipline Odontostomatologiche e Chirurgia Maxillo Facciale
Firenze – Siena, 14-16 Aprile 2011

Università degli Studi di Bari Dipartimento di Odontostomatologia e Chirurgia
Direttore: Prof.ssa D. DE VITO
Calabrodental S.r.l. Unità Operativa di Chirurgia Maxillo-Facciale Regione Calabria – Crotone Dir. San: Dott. M. W. Marrelli

F.Inchingolo, V. Picciariello, F. Inchingolo, G. Dipalma, A. Fioriello, M. Tatullo, A. M. Inchingolo, F. Pettini, M. Marrelli, A. D. Inchingolo, M. De Carolis, A. Palladino


1) Brenna, Breschi, Spreafico et al: Odontoiatria Restaurativa, procedure di trattamento e prospettive future, Ed. Elsevier, 2009;
2) J.L. Ferracane: Developing a more complete understanding of stresses produced in dental composites during polymerization; J. Dent Mater 21 (1) (2005).
3) S.C. Bayne, G. Schmalz: Reprinting the classic article on USPHS evaluation methods for measuring the clinical research of performance of restaurative materials; Clin Oral Invest, 2005.

Lascia un commento

Il tuo indirizzo email non sarà pubblicato. I campi obbligatori sono contrassegnati *
